Airway Devices and Clinical Integration

The Difficult Airway Trolley

2022-08-30 16.57.26.heic
RNSH Difficult Airway Trolley.jpg
2022-08-30 16.58.41.heic
Difficult airway trolley drawer D.jpg
Difficult airway trolley C.jpg

In the event of an airway emergency, it is paramount that the right equipment for the task is easily located. Every department which regularly engages in airway interventions should have both an airway trolley and a separate difficult airway trolley. The difficult airway trolley remains uncluttered and reduces the cognitive burden required to locate the right equipment in times of crisis. You should be familiar with your department’s difficult airway trolley and become proficient with the devices that are provided in this trolley.


The Vortex airway trolley is arranged according to the five domains of the Vortex visual aid, allowing integration of the trolley into the clinical process. It contains airway equipment along with prompt cards to ensure interventions targeted at optimising each attempt are considered and utilised. This represents potential options only, and your local difficult airway trolley should be reviewed for specific equipment.

BVM Ventilation - Optimising Technique

Bag valve mask ventilation is a crucial skill. It provides an opportunity to escape the vortex and regain oxygenation in patients with difficult laryngoscopy.

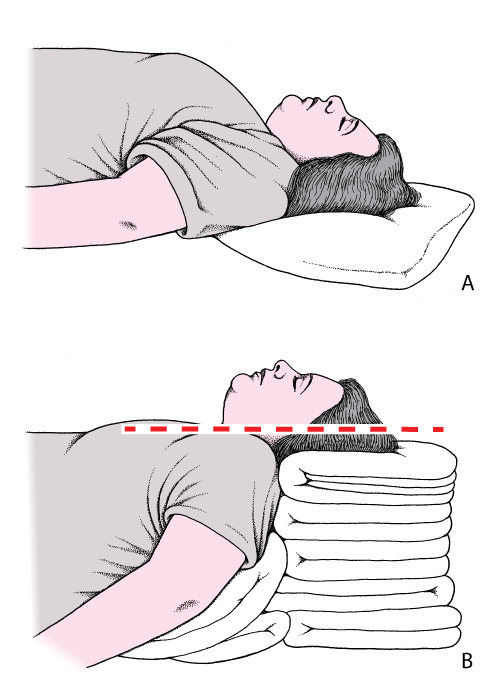

Proper patient positioning, and use of airway adjuncts, is crucial to success. The aetiology of difficult mask ventilation may be conceptually divided into three broad categories:

Contributing Factors

Improper mask size
Inappropriate mask shape/design
Facial hair
Edentulism
Maxillomandibular deformity
Foreign objects

Tips to Optimise Success

Right size or different shape
Two-handed BVM

Shave or cover beard
Leave dentures in
Remove foreign bodies

2 handed BVM.jpg

Adapted from Saddawi-Konefka et al, Respiratory Care 2015. Frequently encountered contributing factors are highlighted in red.

Laryngeal Mask Airways

Second generation LMA’s present a significant advancement on the first-generation ‘Classic’ LMA. The most important improvements are:

  1. Ability to tolerate higher airway pressures

  2. Gastric port

  3. Use as a conduit for intubation

They should be the default option in airway emergencies.

Device

Features

Classic

1st Generation

LMA Classic-fotor-bg-remover-20240109103141.png
  • Eight sizes (neonate to adult)

  • Aperture bars designed to prevent the epiglottis from obstructing the airway – however this prevents passage of a bronchoscope or ETT

  • Soft, silicone cuff which is prone to folding on insertion

ProSeal

LMA Proseal transparent BG.png
  • Oesophageal drain tube in continuity with oesophagus – alerts user to regurgitation

  • Higher airway seal pressure up to 30cm H2O

  • Posterior inflatable cuff improves pharyngeal seal

  • Reinforced with integrated bite block

  • Introducer enhances first-pass success and prevents fold-over

iGel

  • Cuffless – soft polymer mask designed to mould to the laryngeal structures as it warms

  • Narrow-bore oesophageal drain tube

  • Integrated bite block

  • Notably easy to insert

                                                                                                                                              2nd Generation

Supreme

  • Large inflatable cuff, but not posterior

  • Oesophageal drain tube

  • Preformed semi-rigid tube

  • Fins in the mask to prevent epiglottic obstruction

  • Reinforced tip reducing risk of fold-over

Fastrach

  • Rigid handle for one-handed insertion

  • Inflatable cuff with epiglottic elevator bar

  • Dedicated wire-reinforced silicone tracheal tube for LMA-facilitated intubation

  • Anatomically curved but less rigid than the Supreme

  • Single use

  • Integrated gastric access

  • Similar oropharyngeal seal pressure to ProSeal LMA

Ambu AuraGain

Note: The “Fastrach Intubating LMA” is no longer recommended to be included in a difficult airway trolley following release of the ANZCA 2021 guidelines [1]. Instead, we recommend use of a 2nd generation LMA which can allow passage of a flexible bronchoscope to facilitate intubation

Direct laryngoscopy is a tried-and-tested, and universally used method for endotracheal intubation. Its performance in expert hands is similar to that of video laryngoscopy. It offers a variety of specialised blades to adopt to specific situations:

Laryngoscopes

Macintosh Laryngoscope Blade.jpeg

MacIntosh Blade

  • Curved blade designed to sit in the vallecula and elevate the base of the tongue

  • Left handed

  • Proximal flange to sweep tongue aside, containing light source

McCoy Laryngoscope Blade 2.jpg

McCoy Blade

  • Adjustable hinged tip controlled by a lever to allow elevation of the epiglottis

  • May improve the view of the larynx if not obtained with Macintosh blade on first attempt, though generally makes the view worse [2]

  • Consider in patients with “posterior column” problems (i.e. spinal precautions) [3]

Miller Straight Blade 2.jpg

Miller Straight Blade

  • Indicated when a long, floppy epiglottis obscures a laryngeal view (commonly in infants or children)

  • Tracheal intubation is more challenging than with Macintosh blade, especially in adults [4,5]

Polio Macintosh Blade 2.jpg

Polio MacIntosh Blade

  • 135 degree angled blade, useful for patients with restricted space to the sternum

  • Kessel blade is an alternative (110 degree angle)

  • Consider a stubby laryngoscope handle

Video Laryngoscopes

Standard video laryngoscopes (VL), such as the Storz C-MACTM system, are increasingly commonly used. All personnel should become familiar with their use and limitations. A recent systematic review concluded that VL of all designs likely reduce rates of failed intubations and improve first pass success, and their use is suggested by the BJA 2018 Guidelines for the management of tracheal intubation in critically ill adults [6,7].


Potential limitations include difficulty to pass the tube despite greater glottic view, fogging and secretions obscuring the video, equipment failure, and lack of familiarity with standardised grading of airway (i.e. Percentage of glottic opening – POGO) [8].


The types and modifications of VL equipment continues to expand and therefore airway providers need to consider multiple factors, including the shape of the blade, portability, and whether they are channelled. Blade choice is divided into Macintosh or hyperangulated blades, which can be further subdivided into channelled or non-channelled blades. [9].


The hyperangulated VL blades (C-MACTM Dorges “D” blade, or GlideScope® LoPro) offer a distinct advantage in that they conform to the primary oropharyngeal curve, providing enhanced visualisation of the glottis with reduced head and neck manipulation. However, it requires a significant learning curve to master its use and frequently requires the use of an intubating aid (preformed stylet, an equipment specific stylet, or bougie). Instead of entering the corner of the mouth and sweeping the tongue to the left, they use a midline “point and shoot” technique with a channelled device or a midline, guided technique with a styletted angulated endotracheal tube or bougie in an un-channelled device. They are the device of choice as a secondary blade after failed intubation with a video laryngoscope and Macintosh blade and bougie.

Comparison of VL (Lee et al, 2022).png

Aintree Intubating Catheter

The AIC is an adaptation of the cook exchange catheter with a larger internal diameter (4.8mm) to allow integrated use with a slim bronchoscope. The external diameter permits railroading of a size 7.0 or greater ETT. We do not advocate for the device to be used for emergency oxygenation due to the risk of barotrauma. The following video demonstrates its safe use.
